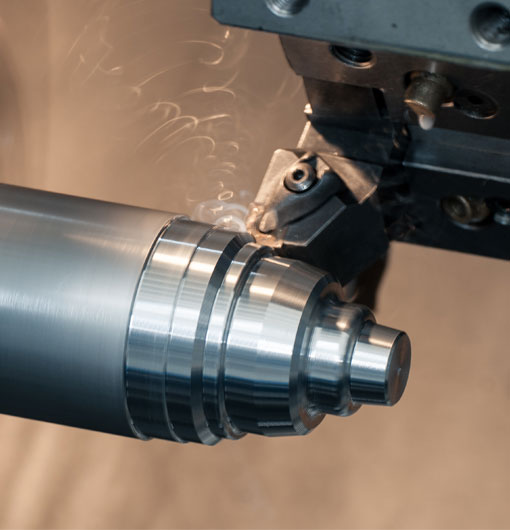

Demystifying CNC Turning Inserts: A Comprehensive Guide to Different Types and Their Applications

CNC turning is a versatile machining process that leverages the power of automation and precision cutting tools to create intricate workpieces for various industries. A crucial element in this metalworking method is turning inserts – the replaceable cutting edges utilized during the turning operation. This informative guide will dive into the world of CNC turning inserts to provide an in-depth understanding regarding different types of inserts and their respective applications.

Introduction to CNC Turning Inserts

The choice of turning inserts greatly determines the efficiency, accuracy, and overall success of a CNC turning process. Choosing the right inserts shapes, materials, and coatings can significantly enhance your machining performance. Therefore, it's crucial for machine operators, manufacturing engineers, and CNC enthusiasts to gain knowledge about the different types of CNC turning inserts, which will help to achieve the desired results.

Types of CNC Turning Inserts – Shapes and Sizes

CNC turning inserts come in various shapes and sizes to cater to different industry needs. These geometries impact the cutting edge, chip flow, and overall cutting performance. Here are some common turning inserts shapes:

1. Triangle inserts (80～ rhombus):These inserts are popular due to their three cutting edges and versatility. They＊re often used in finishing and medium applications, proving efficient in both negative and positive rake systems.

2. Diamond inserts (55～ rhombus):Diamond-shaped inserts are designed for precision work and are suitable for tight spaces. They provide excellent surface finish and dimensional accuracy, typically used for more precision-intensive operations.

3. Square inserts (90～ square):These inserts are selected for their durability and rigidity. As they have sharper edges, they work effectively in heavy-duty roughing and finishing operations.

4. Round inserts:Round inserts are the go-to choice for contouring processes and interrupted cutting applications, providing smooth and consistent cuts even in the presence of hard materials or irregular surfaces.

Types of CNC Turning Inserts – Material Grades

Selecting the right insert material is another crucial step that will impact the longevity and effectiveness of your turning operation. Here are some common materials found in turning inserts:

1. Cemented Carbides:Widely used in most turning operations, cemented carbide inserts possess high wear resistance, making them suitable for high-speed cutting, prolonged tool life, and interrupted cuts. Various grades of carbide offer diverse levels of hardness, toughness, and temperature resistance.

2. Ceramics:Ceramic inserts are suitable for high-speed turning operations on hard materials, like hardened steel or cast iron. Compared to carbides, they have better heat resistance and can withstand higher cutting speeds. However, they possess lower shock resistance and are typically used in stable cutting conditions.

3. Cubic Boron Nitride (CBN):CBN inserts excel in the machining of hardened ferrous materials, such as case-hardened and high-speed steel. They offer high temperature and wear resistance and make them perfect for heat-resistant alloy machining, heavy interruptions, and superalloy machining.

4. Polycrystalline Diamond (PCD):PCD inserts are ideal for machining non-ferrous materials like aluminum, copper, brass, or even composites with high abrasive content. These inserts have outstanding wear resistance and high cutting speeds, ensuring a smooth surface finish.

Types of CNC Turning Inserts – Coatings

CNC turning insert coatings are designed to enhance wear resistance, heat resistance, and cutting speeds for improved tool life and productivity. Here are the most common types of coatings applied to turning inserts:

1. TiN (Titanium Nitride):TiN is a thin gold-colored coating that improves wear resistance, increases tool life, and serves as a wear indicator.

2. TiCN (Titanium Carbonitride):The blue-grey TiCN coating provides enhanced wear resistance, making it ideal for highly abrasive materials and extended tool life.

3. TiAlN (Titanium Aluminum Nitride):Characterized by its violet color, TiAlN offers superior heat resistance. It reduces the amount of heat transferred to the insert and, in turn, increases tool life and productivity.

4. AlCrN (Aluminum Chromium Nitride):This gray-purple coating provides a stable and hard layer that improves the performance of inserts in the machining of high-temperature alloys.

Applications of CNC Turning Inserts

Roughing applications:To achieve an optimal MRR (Material Removal Rate), strong inserts like square or triangle shaped are commonly used, coupled with a tough material grade like carbide.

Finishing applications:For a precise surface finish, diamond or round-shaped inserts are preferred, usually coupled with cemented carbide or PCD materials that have superior wear resistance.

Hard materials machining:Ceramics or CBN inserts are the top choices for machining hardened steel, cast iron, and heat-resistant alloys.

Non-ferrous materials machining:PCD inserts are highly effective in machining non-ferrous materials and composites due to their exceptional wear resistance and smooth cutting action.

This comprehensive guide to CNC turning inserts aims to help you understand the complex topic of selecting the right insert type for your specific needs. Remember, choosing the appropriate insert shape, material grade, and coating plays a vital role in enhancing your overall CNC turning performance. Armed with this knowledge, you now have the tools to make an informed decision and boost your machining productivity.
